40ton Heavy Duty Excavator Attachment Vibrating Ripper 14 Months Warranty

Name: 40ton Heavy Duty Excavator Attachment Vibrating Ripper 14 Months Warranty
Brand: DOPRO
Price: 1000 USD

Quality 40ton Heavy Duty Excavator Attachment Vibrating Ripper 14 Months Warranty wholesale

Brand Name : DOPRO

Model Number : DPVR4000

Certification : ISO CE

Place of Origin : CHINA

MOQ : 1

Price : 1000-20000

Supply Ability : 9000 Pcs Per Month

Delivery Time : 5-7Working Days

Packaging Details : Export Wooden Cases /Pallet

Condition : New

After-sales service provided : Video technical support,Engineers available to service machinery overseas

Efficiency : High Efficiency

Application : Pile Drilling,Solar Photovoltaic,building foundation

Warranty : 14 Months

Name : RAY Vibro Hammer,Multi Hydraulic Vibro Hammer/Vibratory Sheet Pile Driver,Excavator sheet pile driver,Vibratory Pile Hammer cheap sheet pile driver

Color : Customer's Request

Product name : High Frequency Hydraulic Pile Driver,Pile Driving Machine,Excavator Mounted Vibratory Sheet Vibro Pile Driver,YZM45 Excavator Mounted Vibro Hammer,Excavator Hydraulic Vibratory Hammer

Type : Vibratory Hammer,Rod type diesel hammer,HX pile driver,Hydrualic,hydraulic sheet pile driver

Operating principle : High Frequency Hydraulic Vibratory,Hydraulic Static Pressure Pile Driver

Drill diameter : 400-800mm

Material : Q345B,45# Steel

Contact Now

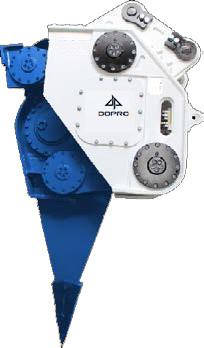

40TON heavy duty excavator attachment VIBRATING RIPPER Germany technology

An excavator can easily be turned into a sheet pile driver by connecting a Vibratory Hammer.
The excavator supplies the oil flow for the hammer and the force of the excavator boom is used to raise the penetration rate of the steel. Occasionally these joint forces means a smaller hammer can be used.
Maximum variety, minimum disturbance
Our Excavator Mounted Vibratory Hammers are used to drive or extract various steel profiles; sheet piles, H-beams, and I-beams and the bigger types, fitted with double clamps, casings and tubular piles, can be driven. The Vibro Hammers have a very narrow throat width that allows you to carry out staggered sheet piling, and with a wide range of Vibratory Hammers and clamps, we have the solution for all types of steel, wood and concrete piles and all different soil conditions.
Swivel Head – Side Gripper
A swivel head is a real time-saver for pile-driving jobs. The manual interference is reduced by picking up a sheet pile in a horizontal position with a 90-degree tilting function. So almost nonstop piling operation is possible, and the operator can drive a sheet pile in less cycle time than the standard type pile driver. Our Side Gripper can rotate and tilt and, in the 90-degree tilted position, can also pick up a profile in a horizontal position.
The excavator-mounted series causes minimal ground vibrations due to its high rotational speed of approximately 2300 rpm. An additional range of Variable Moment / Resonance Free models allows you to drive steel piles with less disturbance on vibration-sensitive projects. Due to the excavator mounting, their extreme flexibility makes this kind of Vibratory Hammer our most agile equipment – especially in compact spaces.

40ton Heavy Duty Excavator Attachment Vibrating Ripper 14 Months Warranty

SPECIFICATION
MODEL	DPAW500	DPAW1400	DPAW2000	DPAW3000	DPAW3800	DPAW4500
WEIGHT(kg)	400	900	1300	1700	2000	2451
MIN	100	280	310	340	566	705
MAX	1196	1709	1750	1880	2250	2600
H	675	1175	1244	1370	1846	2010
H1	397	741	778	1262	1550	1720
TON	4~7	12~18	18~25	28~35	36~42	43~47
