10-36 Ton 36o° Rotating Hydraulic Pulverizer Heavy Duty For Cutting Concrete

  • 1
  • 2

Brand Name : Dopro

Model Number : DPAP2000

Certification : ISO CE

Place of Origin : CHINA

MOQ : 1

Price : 8-800

Supply Ability : 8000 Pcs Per Month

Delivery Time : 3-7 Working Days

Packaging Details : Export Wooden Cases /Pallet

Warranty : 6 months

Color : Requirement,Customer Required,customer's request

Material : Q345B,HARDOX450/500

Application : Excavator,For the demolition of concrete structures,framework etc.,framework and pylons

After-sales service provided : Online support,Video technical support

Type : Hydraulic,Pulverizer,Heavy duty

Weight : 890kgs-4200kgs

Condition : 100%new

Product name : concrete pulverizer,Hydraulic Concrete Demolition Equipment Multi Processor Pulverizer,hydraulic pulverizer,Excavator Attachement(Pulverizer_One Cylinder Type)

Name : PC200 Rock Crushers Concrete Hydraulic Pulverizer,Demolition Pulverizer,Hydraulic Jaw Pulverizer,hydraulic demolition shear,concrete pulveriser

Suitable excavator : 17-24ton

Packing : Pallet with wrapping or Customization,Wooden Pallet or Customized

Jaw opening : 0-890MM

Oem : available,YES

Key word : concrete pulverizer,hydraulic pulveriser

Suitable : 13t-50t Excavator and backhoe

Part name : Pulverizer,Excavator pulverizer and shear

Machine type : 04-10,18-26T excavator

Contact Now

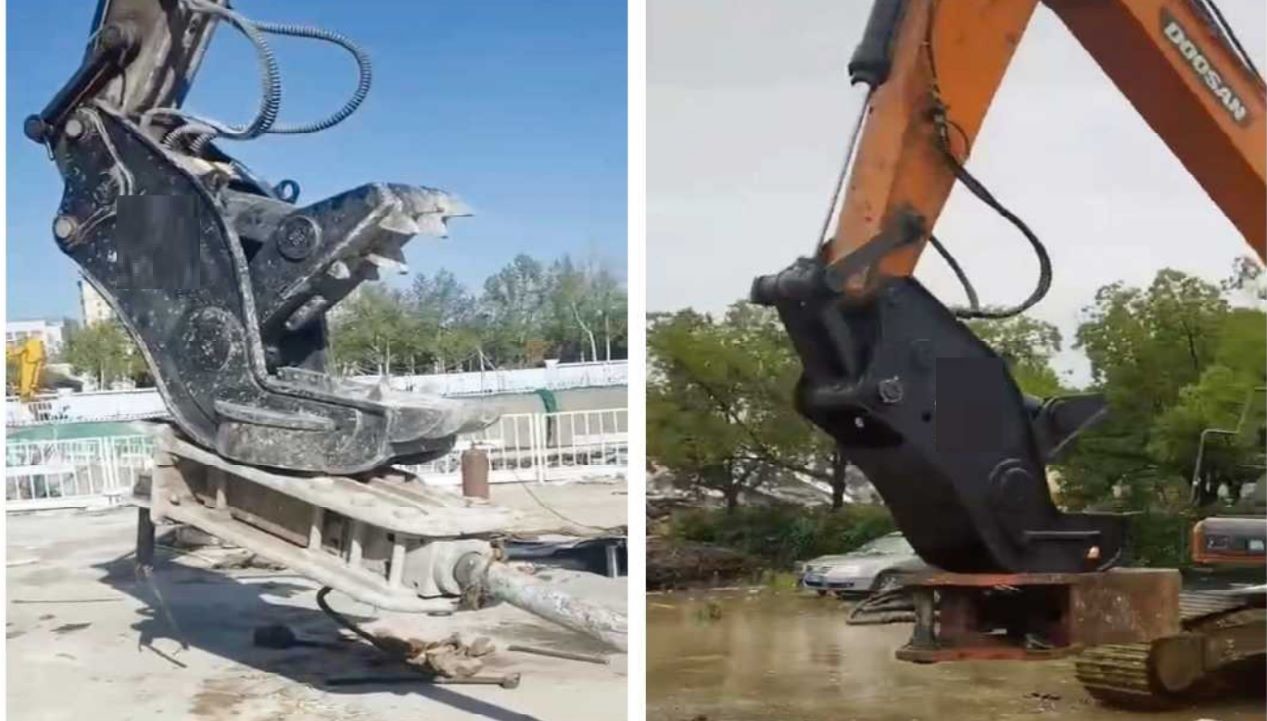

10-36 ton 36O° ROTATING HYDRAULIC PULVERIZER heavy duty for cutting concrete all type excavator

We launches its new series of dedicated rotating pulverizer. This equipment is particularly effective for primary and secondary demolition, being suitable for high reach and regular applications. The RP range are fitted with a power valve to give maximum power when required and decrease cycle times when no load is applied.
The perfect combination of power through the large hydraulic cylinder, top quality components and highest grade steels which give the optimum strength and wear resistant properties.
As below are the advantages for dopro hydraulic rotation pulverizer.

1. Structure: The reinforced RP pulverizer structure is designed to last forever and facilitates the crushed material drop off increasing efficiency.
2. Rotation: The continuous hydraulic rotation enables precise positioning during in height demolitions and ground operations, while its robust components grant high durability.
3. Mobile jaw plate: The 2 different jaw plate available ensure a perfect fit with the specific job. The CRP plate, with a single tooth, grants higher penetration on tough concrete and is indicated for primary demolition. The PP plate, with double teeth, maximizes productivity and is mostly used for secondary demolition.

4. The cylinder with great power and high speed: The high performance of the RP pulverizer is guaranteed by the presence of a speed valve. This allows an increase in the number of opening and closing cycles of the pulverizer and for the hydraulic circuit of the excavator to be preserved.
5. Blades: On each model there are blades for rebars cutting. These parts can be turned to different sides to recover the correct profile of the cutter.
6. The speed valve: we add speed valve to reduce opening and closing time boosting productivity. So it will save the project time and improve efficiency.
7. The interchangeable parts: like teeth plates and blades, ensure quick and easy maintenance.

SPECIFICATION
DESCRIPTION UNIT DPAP1600 DPAP2000 DPAP3000 DPAP4500
Applicable Excavator ton 14~20 18~26 26~32 38~48
lbs 30,864~44,092 39,683~57,320 57,320~70,547 83,775~105,821
Operating Weight kg/lbs 1,250/2,755 1,800/3,968 2,350/5,180 3,450/7,605
Overall Length(L) mm/inch 1,580/62.2 1,806/71.1 1,990/78.3 2,336/919
JawOpening mm/inch 800/31.4 980/38.5 1,100/43.3 1,300/51.1
Force at Mid ton/lbs 70/154,323 120/264,554 195/429,901 270/595,248
Operating Pressure bar/psi 280/4,061 300/4,351 320/4,641 320/4,641
Setting Pressure bar/psi 　 　 　 　
Rotation Type 　 Fixed

10-36 Ton 36o° Rotating Hydraulic Pulverizer Heavy Duty For Cutting Concrete

10-36 Ton 36o° Rotating Hydraulic Pulverizer Heavy Duty For Cutting Concrete

10-36 Ton 36o° Rotating Hydraulic Pulverizer Heavy Duty For Cutting Concrete
